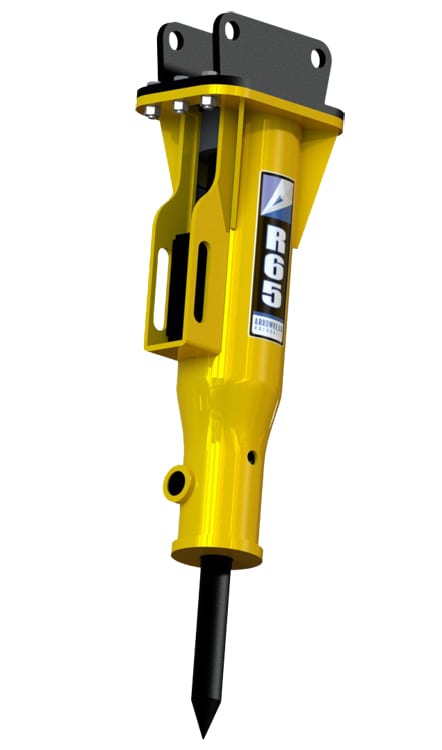

Arrowhead Rockdrill – R65 Hydraulic Hammer (65mm) – Compact R Range

£4,700.00 Exc VAT

Machine Make / Model

For correct matching of products, please enter your machine make and model.

The R Range Hydraulic Hammer

Arrowhead Rockdrill’s R Range hydraulic hammers bring a new industry leading tie-rodless hammer to the market. Based around a unique design the R Range hammers eliminate the need for tie rods in the hammer assembly increasing the robustness of the hammer while simplifying its construction.

The R Range hammers are a compact and powerful design suitable for a wide variety of applications all with the effective price and industry leading support our customers deserve.

Features of the ‘R’ Range

  • Tie-rodless hammer design
  • Narrow round box provides superior access to surfaces in confined spaces such as trenching work
  • Vibration and sound supressed at standard
  • The hammer can be fully serviced using no specialist tools
  • Powerful gas fired operation using less oil at lower working pressures
  • Excavator friendly
Categories: , Tags: , , , ,
Description

Description

Hammer Specification unit R40 R45 R55 R65
Max energy per blow J 260 550 680 850
Require flow lpm 14-30 25-45 40-60 45-70
Operating pressure bar 120 90 110 110
Blows per min per min 650-1100 650-1100 700-1250 550-1200
Guaranteed sound power dB 112 116 117 118
Tool diameter mm 40 45 55 65
Working weight kg 85 120 135 190
Carrier weight Tonnes 0.7-1.5 1.5-2.8 2.8-4.0 4.0-5.5
