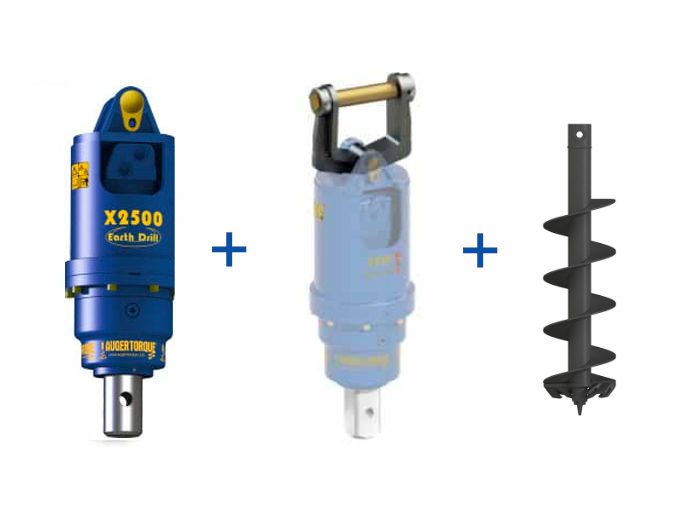

Auger Torque X2500 Budget Package Including Single Pin Hitch and Auger

Original price was: £1,725.00.Current price is: £1,495.00. Exc VAT

Save money with this great Causeway Plant Package Deal.

Auger Torque X2500 Hydraulic Earth Drill

Auger Torque X2500 Hydraulic Earth Drill

Auger Torque X2500 Earth Drill

Recommended for Mini excavators 1T to 2.5T

MODEL X2500
Oil Pressure Range 70 - 240 Bar
Torque Range 830 - 2847 Nm
Oil Flow Range 27 - 65 lpm
Speed Range 36 - 87 rpm
Hub Options 65mm Round
Height 585 mm
Width 200 mm
Weight 48 kg
Hitch Options Single Pin Hitch
Double Pin Hitch
Cradle Hitch
Auger Range S4
Rec. Drilling Diameter Range 100 - 500 mm

PRODUCT RANGE

EARTH DRILLS // MINI EXCAVATORS 750KG TO 3T

The Earth Drill X1500-X2500's are the perfect choice for small excavators between 1T-3T and even though they are the smallest planetary drive in our line up they are over engineered and built to last.

High quality hydraulic motors, output shaft bearings which are 50% larger than our nearest competitors comparable drive and the use of only high grade materials mean that your Earth Drill will have a long, reliable service life.

Standard with the X1500-X2500 series and unique to Auger Torque, the Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers. This is a MUST-HAVE FEATURE for any safety conscious company.

Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

High quality hoses and couplers are standard with this series of Earth Drills, type and size need to be specified at the time of purchase, rest assured we keep all standards in stock and you will be ready to use your Earth Drill the moment you take delivery.

All Earth Drills are covered by Auger Torque’s industry leading warranty. Click here to find out more about our Lifetime Warranty and to register your product online.

Please have a look at the below table for more specifications.



Single Pin Hitch to suit 5000 to 8000MAX Earth Drill

Single Pin Hitch to suit 1200 Earth Drill

Single Pin Earth Drill Hitches

Pin Options

Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style of hitch. When ordering this hitch please supply your pin diameter and dipper width or request our hitch specification form. Not compatible with hydraulic quick hitches, select a double pin hitch or double pin cradle hitch with your Earth Drill package instead.The Single Pin Earth Drill hitch is the most basic and most low cost hitch option Auger Torque offers and is suitable for excavators and backhoes. Available for all drives in our range from the Earth Drill 1200 all the way to the Earth Drill 50,000MAX.

Clear

S4 Auger Tungsten Range: Micro Excavators & machines 1T to 5 Ton (65mm Round Hub)

The S4 range of augers has been specifically designed for excavators and machines 1T to 5T.

Mini Excavators 1 – 5T, Mini Loaders, Skidsteer Loaders up to 80hp and Truck Cranes up to 9T / Metre

Description

The S4 Range of Augers has been specifically designed for Mini Loaders, Skid Steer Loaders & Excavators up to 5T. S4 Range Augers are available with a number of wearpart combinations, catering from soft grounds all the way to mixed rocky grounds and even permafrost.

All Auger Torque Augers are built from high grade steel and incorporate many features that will allow you to work more efficiently and will make your job easier. Shallow pitch flights ensure they will cut with maximum efficiency and, most importantly keep the spoil on the flights when removed from the hole.

Heavy duty tubes, constant spiral cut as well Auger Torques unique Shock Lock™ Tooth Locking System, which will guarantee that you will never lose your auger teeth when reversing your auger, have given Auger Torque Augers their industry leading reputation. The standard hub for the S4 range is 65mm round, however we are able to supply most hub options on the market.

Specification

Mini Excavators 1 – 5T, Mini Loaders, Skidsteer Loaders up to 80hp and Truck Cranes up to 9T / Metre

Overall length: 1.2m

Fully flighted: 525mm – 950mm

Sizes: 100mm – 900mm

Earth drills: 100mm-450mm:  X1500(excld.450mm)/ X2000/ ML2000/ X2500/ ML2500/ 3000MAX/ 3000TC/ 3500MAX/ 4500MAX

Earth drills: 500mm: X2500/ ML2500

Earth drills: 600mm: 3000MAX/ 3000TC

Earth drills: 750mm: 3500MAX/ 4500MAX

Earth drills: 900mm: 4500MAX

Overall Length given includes the auger fitted with wear parts.

No Extension
