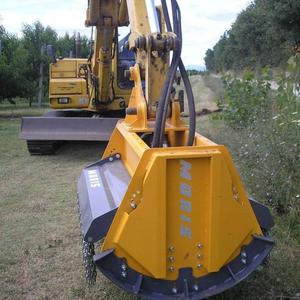

FEMAC FLAIL / MULCHER – T13 DF105 REV 8.0T-16.0T (fixed tooth Mulcher)

PRODUCT CARD

A high quality Italian built flail with up to 130cm cutting length 8.0 – 16.0 ton excavators. Suitable for drainage working, land clearance and light duty mulching.

The REV stands for reversible and the unit can be swept back and forth for continuous cutting without lifting off the ground.

TECHNICAL FEATURES AND STANDARD EQUIPMENT
– MZ Helicoidal Rotor with hammers austempered and cutting blade interchangeable.
– Toothed high-performance belts transmission.
– Internally reinforced with inside double-case body with interspace.
– Protective belts-cover.
– Shearing symmetric head, for a faster working by the excavator rotation.
– Input and output mouths completely identical, adjustable
– Adjustable hoods , fully openable for higher cutting capacity.
– Side skids adjustable on 3 positions to change the height of the cut.
– Inside Rotor Supports with ”labyrinth” for the protection of the bearings by the impurities.
– Double Row spherical adjustable bearings of 1st quality.
– Valves block complete with priority valve for anti-cavitation.
– Cast iron gear motor.
– Accident prevention chains protections according to EC directives.

ACCESSORIES
1 – Mounting hitch & pins 8.1-12.0 ton.
1 – Mounting hitch & pins 12.1-16.0 ton.
2 – Kit hoses Lg. 2.5 meters.
2 – Kit hoses Lg. 2.5 meters for piston motor.
3 – Feeler roller.
4 – Self-levelling support ( 60kg).
5 – Piston motor (no block valves).
6 – Block valves 1” for piston motor.
7 – Hydraulic rotation device ( not self-levelling support).
8 – Valves block deduction, only anticavitation.
