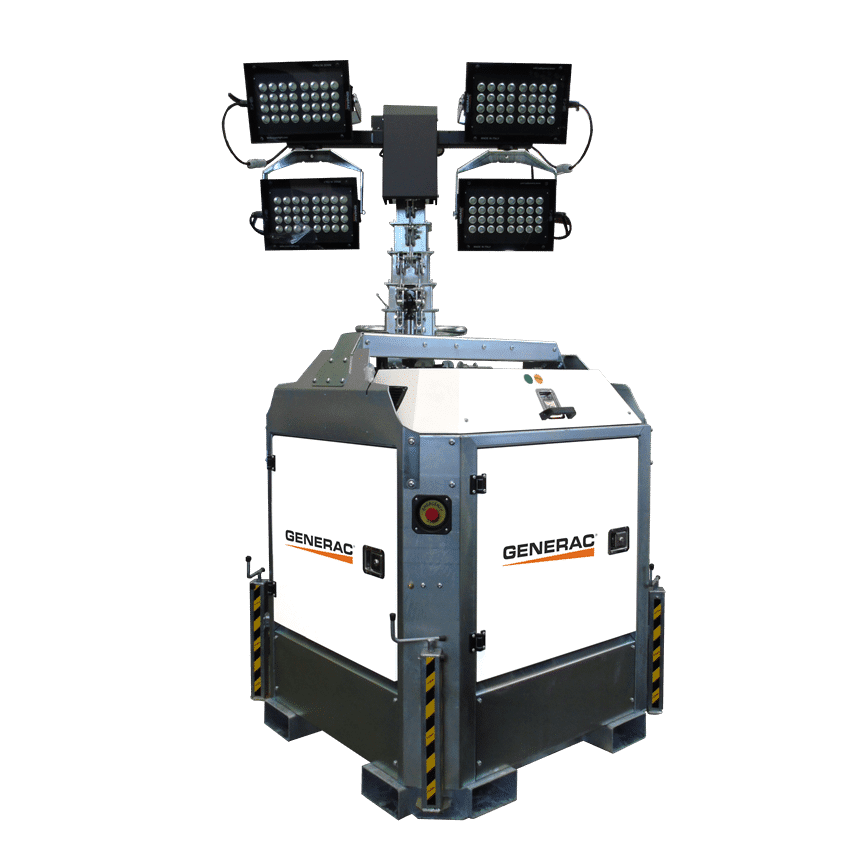

GENERAC CUBE+ SUPER Lighting Tower – (4x1000W Metal Halide, 4x185W LED or 4x320W LED)

£9,999.00 Exc VAT

PRODUCT CARD

Yanmar 2TNV-70

Minimum dimensions (L x W x H) 1220 x 1150 x 2420 mm
Maximum dimensions (L x W x H) 1790 x 1740 x 8400 mm
Dry weight 1070 kg
Lifting system Hydraulic
Mast rotation 340°
Lamps power 4 x 320 W
Lamps type LED
Total lumen 167300 Lm
Illuminated area 4500 m2
Engine Yanmar 2TNV-70
Engine cooling Liquid
Cylinders (q.ty) 2
Engine speed (50/60 Hz) 1500 / 1800 rpm
Liquid containment (110%)
Alternator (kVA/V/Hz) 5/220/50 – 5/240/60
Outlet socket (kVA/V/Hz) 2,5/220/50 – 2,5/240/60
Inlet plug (A/V/Hz) 16/220/50- 16/240/60
Avg. sound pressure 59 dB(A) @ 7m
Wind speed resistance 80 km/h
Tank capacity 170 l
Running time 243 h
Description

Description

CUBE  Super light tower

The compact design of the new CUBE  Super light tower and its base configuration assures you that during events it cannot be moved or towed, and the new internal locking system will grant a safe and secure locking of stabilizers. New configurations available!

GTL01 digital controller

digital controller specifically studied to manage every function of the light tower for the best ease of use.

Top accessibility

5 doors for a wider access: 4 wide doors, provide a complete access to the technical area. 1 compass-top door for safe and convenient maintenance of the engine.

Lamp options

Choose the lamp type you prefer between three options: 4x1000W metal halide, 4x185W LED or 4x320W LED floodlights.

Low voltage LED

The CUBE  Super represents the state of the art on safety and reliability. All LED installed are powered with low-voltage 48 Volts. No more high voltages on external caables and LED drivers are protected inside the body frame. Safety as a must!

Bolted frame

A bolted frame for a much better resistance to vibrations, wear and rust. It offers the best reliability and durability in the industry.

Liquid containment tank

liquid containment tank to avoid any risk of leakages on the ground.

Safe locking stabilizers

New adjustable locking system embedded in the machine frame. A step forward from competition standard locking system. No more removable external lockers: when CUBE  Super’s doors are locked, it’s impossible to change position or even remove the stabilizers.
