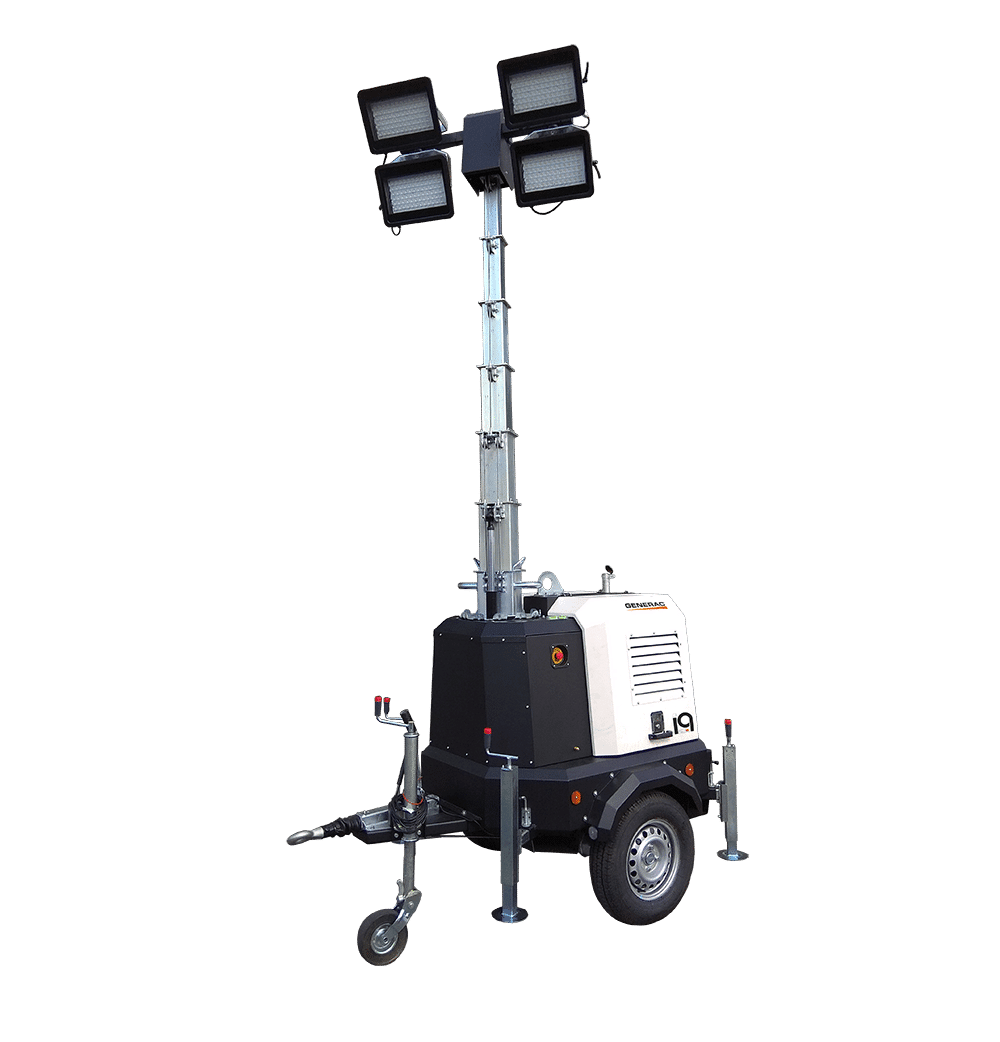

GENERAC Lighting Tower – IQ20 Yanmar (4 x 320W LED)

£8,499.00 Exc VAT

PRODUCT CARD

Minimum dimensions (L x W x H) 2200 x 1400 x 2440 mm
Maximum dimensions (L x W x H) 2200 x 1850 x 8500 mm
Dry weight 980 kg
Lifting system Hydraulic
Mast rotation 340°
Lamps power 4 x 320 W
Lamps type LED
Total lumen 184000 Lm
Illuminated area 4500 m2
Engine Yanmar L70N
Engine cooling Air
Cylinders (q.ty) 1
Engine speed (50/60 Hz) 3000/3600 rpm
Liquid containment (110%)
Alternator (kVA/V/Hz) 5/220/50 – 5/240/60
Avg. sound pressure 68 dB(A) @ 7m
Wind speed resistance 110 km/h
Tank capacity 100 l
Running time 91 h

Optional Extra’s – Price on request

  • 50mm Ball hitch type
  • Additional spare tyre with support
  • Earth picket with 5m cable
  • 110v outlet (V20 Models Only)
  • Certified spark arrestor (V20 Models only)
  • Shut down valve – 2/3 Cylinder Engines
  • Shut down valve – 1 cylinder Engine (IQ20)
  • Trackunit – Telemetry
  • Hot dip zinc coating of mast sections (min. 5 pieces)
Description

Description

iQ20 light tower

The iQ20 light tower is a mobile lighting tower equipped with a low consumption diesel engine, 4x320W LED floodlights and a digital controller designed by Generac Mobile® for specific use on lighting towers. Thanks to the telemetric system, the iQ20 is the perfect solution for rental companies looking for a simple remote management system of their rental fleet.

Telemetric system

The iQ20 model is equipped with an optional telemetric system granting a constant remote monitoring of machine parameters:

  • GPS position
  • machine status
  • fuel and oil levels
  • alternator measures
  • lamps and battery status

GTL01 digital controller

The iQ20 is equipped with a GTL01 digital controller specifically studied to manage every function of the light tower for the best ease of use.

Low voltage LED lamps

4x320W high efficiency LED floodlights, powered with 48 Volts. No more high voltages on external cables. Safety as a must!

AMOSS KIT – Safe and smart!

Even more safety with the iQ20! Thanks to the optional AMOSS Kit you can’t raise the mast without pulling the handbrake, and the mast automatically lowers if the handbrake is unlocked.
