GENERAC V20 HYBRID Lighting Tower – Yanmar (4 x 150W / 4 x 300W LED)

£15,999.00 Exc VAT

PRODUCT CARD

V20 Hybrid 4x150W

Minimum dimensions (L x W x H) 2200 x 1400 x 2440 mm
Maximum dimensions (L x W x H) 2200 x 1850 x 8500 mm
Dry weight 1050
Lifting system Hydraulic
Mast rotation 340°
Lamps power 4 x 150 W
Lamps type LED
Max. total lumen 76500 lm
Max. illuminated area 2500 m2
Engine Yanmar L100N
Engine cooling Air
Cylinders (q.ty) 1
Engine speed (50 Hz) 2500 rpm
Liquid containment (110%)
Alternator (kVA/V/Hz) 5/220/50
Battery recharging time 2h 06′ @ 100% dimming
Battery running time 8h 20′ @ 100% dimming
Inlet plug (A/V/Hz) 16/220/50
Avg. sound pressure 0 – 66 dB(A) @ 7m
Wind speed resistance 110 km/h
Tank capacity 85 l
Total running time @75% 334 h



V20 Hybrid 4x300W

Minimum dimensions (L x W x H) 2200 x 1400 x 2440 mm
Maximum dimensions (L x W x H) 2200 x 1850 x 8500 mm
Dry weight 1060
Lifting system Hydraulic
Mast rotation 340°
Lamps power 4 x 300 W
Lamps type LED
Max. total lumen 153000 lm
Max. illuminated area 4200 m2
Engine Yanmar L100N
Engine cooling Air
Cylinders (q.ty) 1
Engine speed (50 Hz) 2500 rpm
Liquid containment (110%)
Alternator (kVA/V/Hz) 5/220/50
Battery recharging time 2h 26′ @ 100% dimming
Battery running time 4h 06′ @ 100% dimming
Inlet plug (A/V/Hz) 16/220/50
Avg. sound pressure 0 – 66 dB(A) @ 7m
Wind speed resistance 110 km/h
Tank capacity 85 l
Total running time @100% 161 h
Description

Description

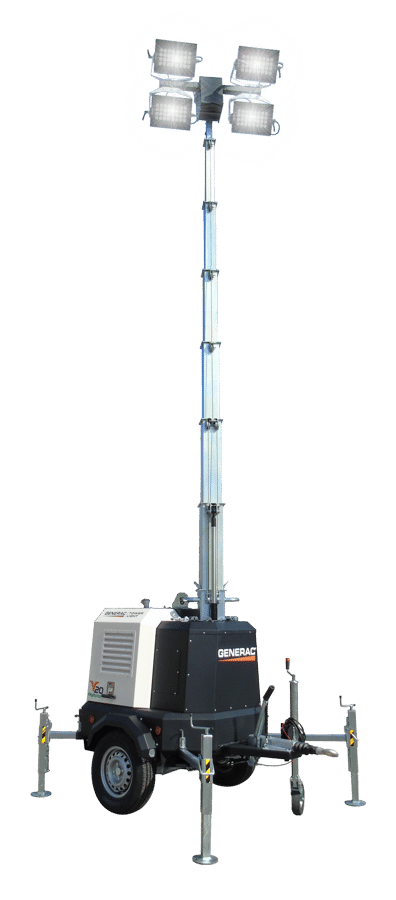

V20 Hybrid light tower

The V20 Hybrid light tower is equipped with a hybrid powering system composed by an high efficiency lithium battery pack and a diesel backup generator. Thanks to this new technology, this model has a long running time with heavy reduction of fuel consumption and carbon emission.

Lithium battery pack

The V20 Hybrid provides up to 8 hours of continuous operation without carbon dioxide emissions, fuel consumption nor noise, thanks to the battery pack. The special lithium batteries are able to be recharged in less than 2 hours. The batteries can be recharged from either an external power source or from the built-in backup generator.

Backup generator

When the V20 Hybrid has utilized all of the stored energy from the battery pack, the diesel generator will automatically start, providing all the energy required to power the lamps and at the same time recharging the battery pack. When the battery pack is fully recharged, the generator will automatically turn off.

GTL03 Digital Controller

A digital controller specifically studied to manage every function of the hybrid light tower for the best ease of use.

Low noise and carbon emission

When the V20 Hybrid light tower is powered through the battery pack, it is completely silent and doesn’t emit carbon dioxide (CO2). An ideal solution for events and working areas with low noise or CO2 emission requirements.

Auto start/stop

Fitted as standard, the Darkness sensor and Digital timer allow the automatic start and stop of the machine offering great control  and energy savings.

Long running time

Thanks to the hybrid features and the LED lamps, this model can run more than 230 hours without refueling

Generac® LED Lamps

4x300W or 4x150W high efficiency LED floodlights designed by Generac Mobile®
