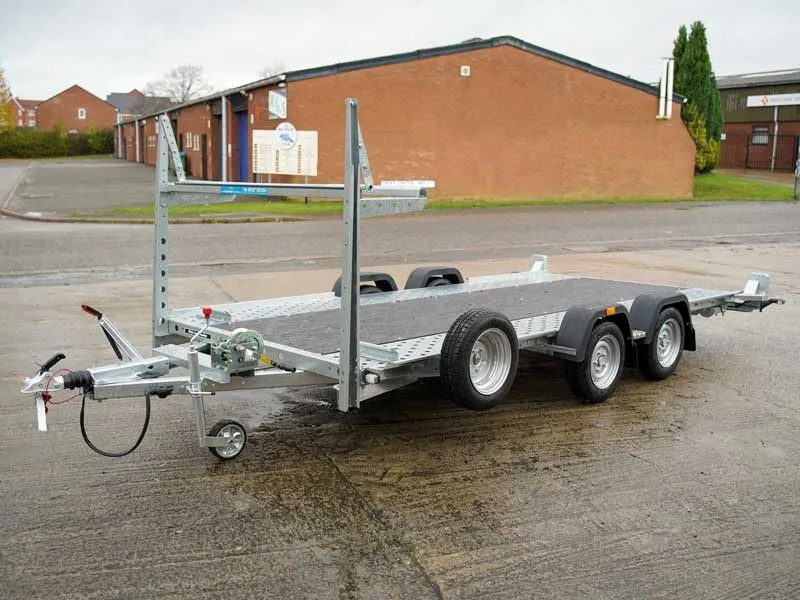

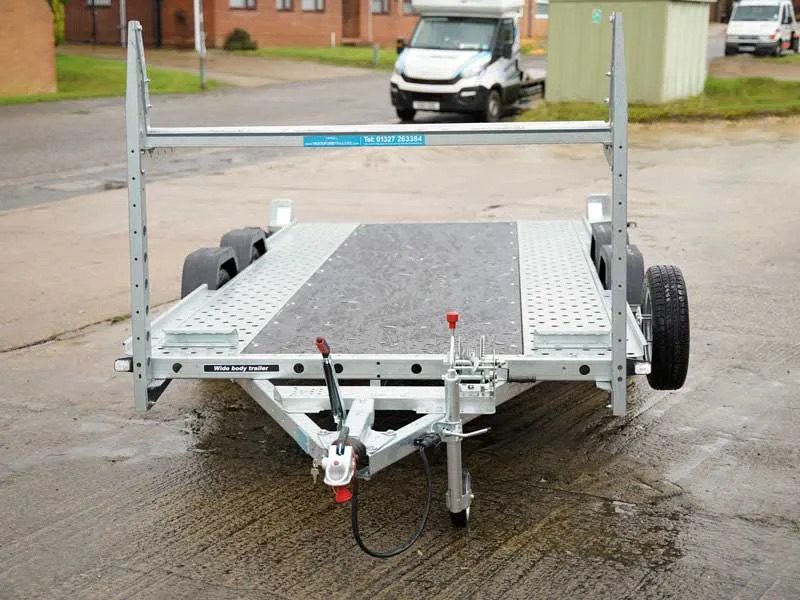

    The Woodford Widebody Trailer

    The Widebody is extremely versatile with thirteen variant bed sizes and optional tilts with ramps. The trailer also has two loading angles for ease of transportation, a popular trailer with motorsport clients and perfect for wide low ground clearance cars.

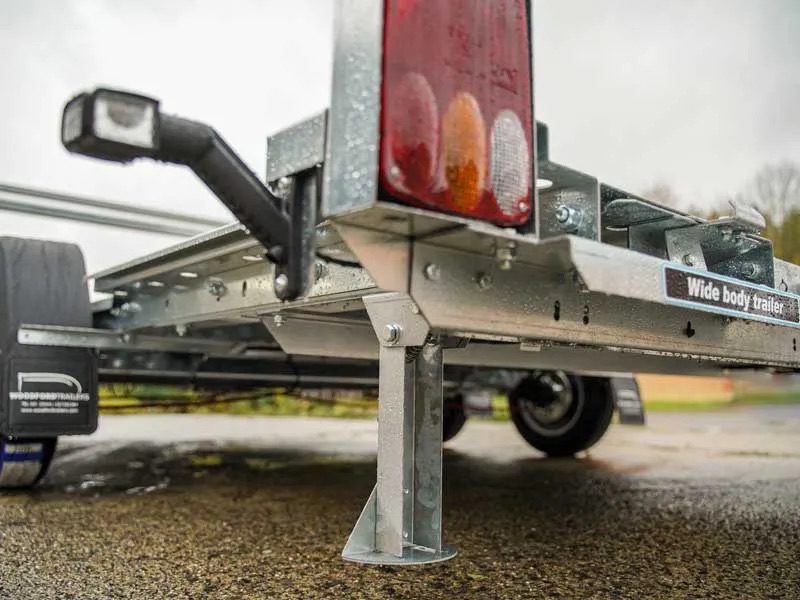

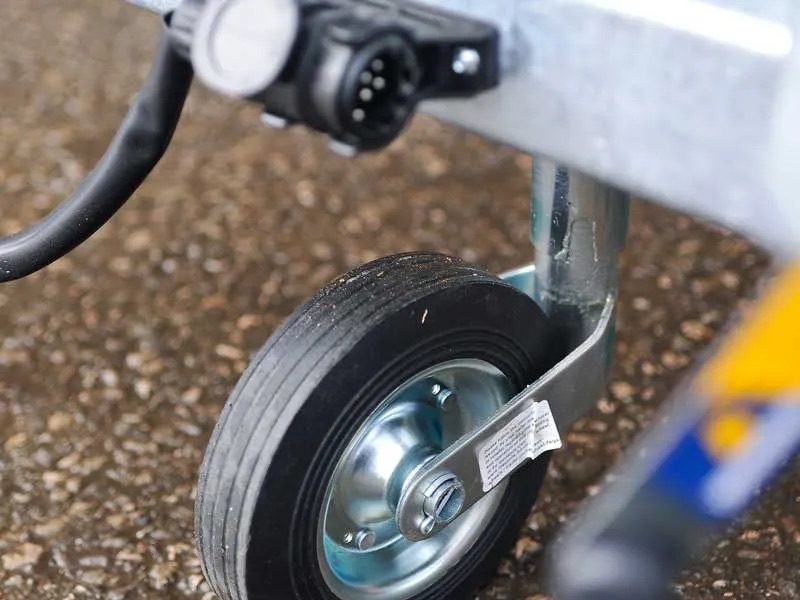

    All Widebody trailers come as a standard with a spare wheel, drop down legs, locking hitch and wheel chocks. For heavy duty car transportation the trailer hauls 2600 or 3000 gross kg. Centre decking is also fitted as standard equipment. The quality and strength of the chassis and components make Woodford trailers the perfect choice for all of your widebody transportation needs.

    All Woodford trailers are manufactured at their workshop in Northamptonshire and come with a five year chassis warranty, a one year warranty for lamps and a two year warranty for running gear (axles and couplings), valid from the date of purchase. All Woodford Trailers have full European Type approval.

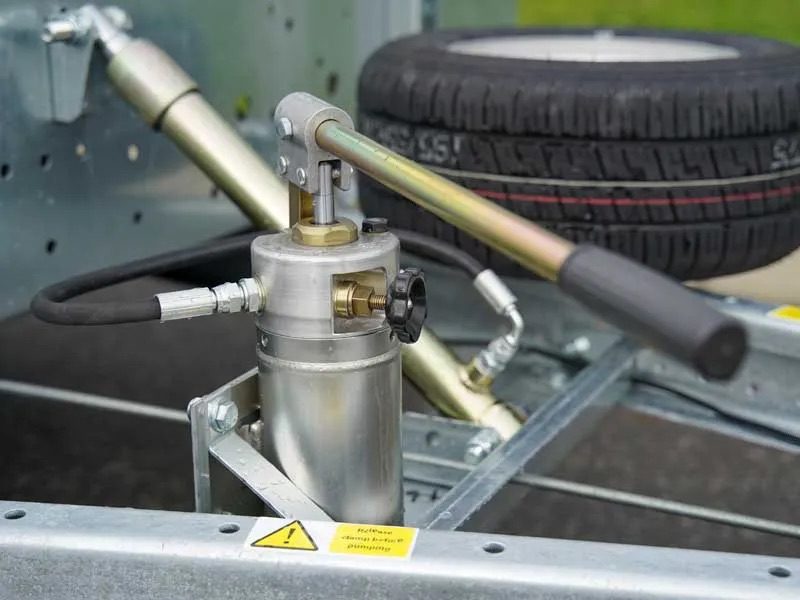

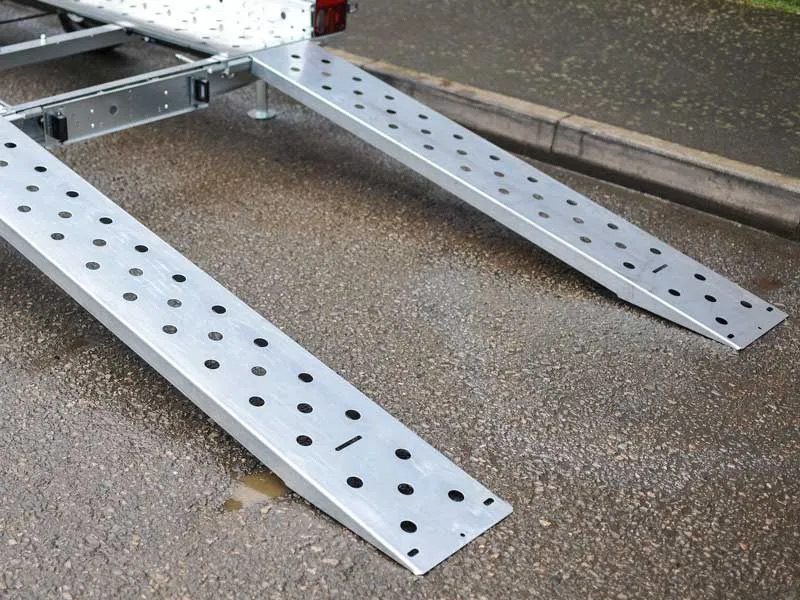

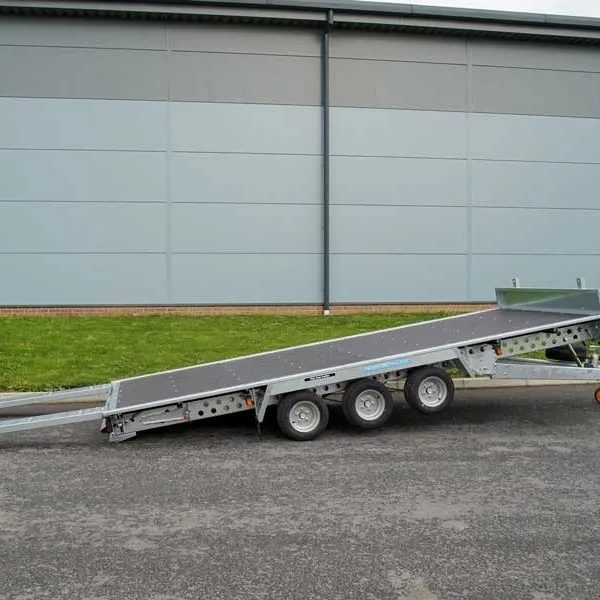

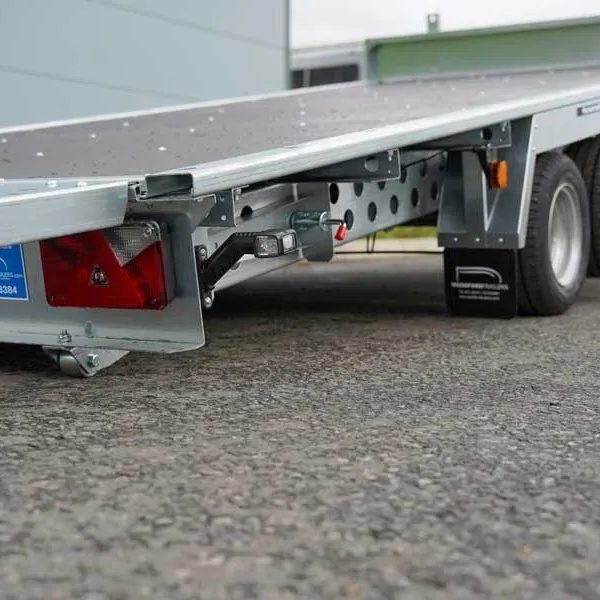

    Simplicity in loading your widebody vehicle is of  paramount importance which is why Woodford implemented two great loading angles thanks to the tilting bed ensuring your vehicle boards the trailer smoothly. The ramps pull out straight from the end of the runways for ultimate ease.

    Contact us today for more information.

    Model Specifications

    Model

    Bed Dimensions B,E

    Load

    Gross

    Axles

    Wheel size

    O/A width C

    O/A length F

    Loading angle

    Mudguard height A

    Gap between runways

    Ramp lenght D

    Price ex VAT

    In ft/in                   In mm

    kg

    kg

    number

    inches

    mm

    mm

    degrees

    mm

    mm

    mm

    WBT-009 8’x5’10”
    2440 x 1780

    950

    1300

    1

    12

    2170

    3725

    13

    620

    890

    1520

    £2,324

    WBT-008 9’x5’10”
    2740 x 1780

    950

    1300

    1

    12

    2170

    4025

    13

    620

    890

    1520

    £2,345

    WBT-001 9’x 6′ trailer
    for Smart For Two

    950

    1300

    1

    12

    2230

    4025

    13

    620

    100

    1520

    £2,366

    WBT-010 10’x5’10”
    3050 x 1780

    950

    1300

    1

    12

    2170

    4325

    13

    620

    890

    1900

    £2,392
    WBT-011 11’x5’10”
    3350 x 1780

    950

    1300

    1

    12

    2170

    4625

    13

    620

    890

    1900

    £2,413

    WBT-020 11’x5’10”
    3350 x 1780

    1200

    1600

    2

    10

    2170

    4625

    13

    560

    890

    1900

    £2,700

    WBT-002 11’X6’smart car trailer
    3350 x 1830

    940

    1300

    1

    12

    2230

    4725

    13

    620

    100

    1900

    £2,428

    WBT-030 11’x6’6”
    3350 x 1980

    950

    1300

    1

    12

    2330

    4725

    13

    620

    110

    1900

    £2,428
    WBT-040 11’x6’6”
    3350 x 1980

    1200

    1600

    2

    10

    2330

    4725

    13

    560

    110

    1900

    £2,700
    WBT-050 12’x5’10”
    3660 x 1780

    1200

    1600

    2

    10

    2170

    4910

    13

    560

    890

    1900

    £2,721
    WBT-060 12’x6’6”
    3660 x 1980

    1200

    1600

    2

    10

    2330

    5010

    13

    560

    110

    1900

    £2,721
    WBT-061 12’x6’6”
    3660 x 1980

    1500

    2000

    2

    12

    2330

    5010

    13

    620

    110

    1900

    £2,855
    WBT-070 13’x5’10”
    3960 x 1780

    1200

    1600

    2

    10

    2170

    5215

    13

    560

    890

    1900

    £2,742
    WBT-080 13’x6’6”
    3960 x 1980

    1200

    1600

    2

    10

    2330

    5315

    13

    560

    110

    1900

    £2,742
    WBT-081 13’x6’6”
    3960 x 1980

    1500

    2000

    2

    12

    2330

    5315

    13

    620

    110

    1900

    £2,877
    WBT-090 14’x6’6”
    4270 x 1980

    1200

    1600

    2

    10

    2330

    5624

    13

    560

    110

    1900

    £2,763
    WBT-101 14’x6’6” Tilt with ramps
    4270 x 1980

    1500

    2000

    2

    12

    2330

    5624

    5

    620

    110

    1900

    £2,896
    WBT-110 14’x6’6”
    4270 x 1980

    1930

    2600

    2

    12

    2330

    5624

    13

    620

    110

    2450

    £3,894
    WBT-111 14’x6’6” Tilt with ramps
    4270 x 1980

    1900

    2600

    2

    12

    2330

    5624

    5

    620

    110

    2450

    £4,089
    WBT-120 14’x6’6”
    4270 x 1980

    2330

    3000

    2

    12

    2330

    5624

    13

    620

    110

    2450

    £4,038
    WBT-121 14’x6’6” Tilt with ramps
    4270 x 1980

    2300

    3000

    2

    12

    2330

    5624

    5

    620

    110

    2450

    £4,233
    WBT-130 16’x6’6”
    4870 x 1980

    1930

    2600

    2

    12

    2330

    6224

    13

    620

    110

    2450

    £3,949
    WBT-131 16’x6’6” Tilt with ramps
    4870 x 1980

    1900

    2600

    2

    12

    2330

    6224

    5

    620

    110

    2450

    £4,144
    WBT-140 16’x6’6”
    4870 x 1980

    2300

    3000

    2

    12

    2330

    6224

    13

    620

    110

    2450

    £4,012
    WBT-141 16’x6’6” Tilt with ramps
    4870 x 1980

    2270

    3000

    2

    12

    2330

    6224

    5

    620

    110

    2450

    £4,207
    WBT-141/1 16’x6’6” Tilt with ramps
    4870 x 1980

    2720

    3500

    2

    12

    2330

    6224

    5

    620

    110

    2450

    £4,239
